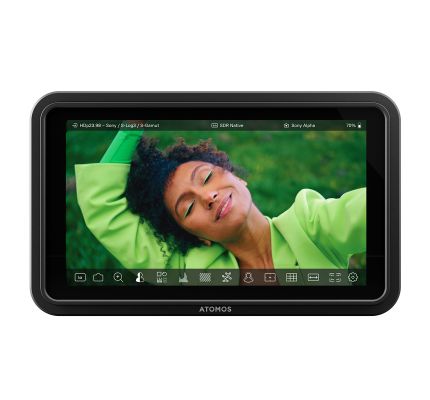

Atomos Shinobi II (ATOMSHB003)
Wąski , lekki 5-calowy monitor HDR o jasności 1500 nitów jest idealny dla Glogerów, fotografów i innego rodzaju twórców.
Firma Atomos tworzy od ponad dekady technologię do monitorowania i nagrywania. Shinobi II został stworzony z 50% jaśniejszym ekranem i mniejszym rozmiarem, w którym wciąż mieści się wiele funkcji.
CECHY:
- Idealny do fotografii
- Nowy panel sterowania i blokowane przewody
- Jasność 1500 nitów.
- Długa praca baterii
- Monitorowanie 4K
- Tryb analizy
- Wbudowane pliki LUT
- Wskaźniki do kadrowania.
- Sterowanie kamerą.
- USB-C PD
Zawartość zestawu:
• Shinobi II
• USB-C 2.0 cable
• HDMI + USB-C locking cable adapter
• Quick Start Guide
Specyfikacja:
Physical Specifications
- Dimensions (W x H x D mm)
- 151mm x 91.5mm x 20.8mm
(28.5mm with locking cable adaptor attached)
- Weight
- 210g
- Mount Points
- Bottom 1 x 1/4-inch 20 with anti-rotational points
Environmental
- Ambient operating temperature
- Up to 40 degrees Celsius
Construction & Control
- Body
- ABS polycarbonate
- Cooling
- Passive heat sink
- Multi-function button
- Power / lock screen
Power
- Input voltage
- 6.2V to 16.8V
- Operating power
- <10W
- Compatible batteries
- NPF L series
- Built in battery
- No
- Continuous power
- Via NPF battery and USB-C PD Power
- DC in connector
- Via Battery Eliminator (optional)
- DTAP
- Via Battery Eliminator and optional D-Tap to DC barrel cable
- USB PD IN
- <10W
- USB PD OUT
- >13W
Display
- Touchscreen
- SuperAtom IPS panel (capacitive touch)
- Size
- 5.2-inch
- Resolution
- 1920 x 1080 / 178 + H & V
- PPI
- 427
- Bit Depth
- 10-bit (8+2 FRC)
- Backlight Type
- Edge lit
- Brightness (cdm2 / Nits)
- 1500
- Aspect Ratio
- 16/9
- Color Gamut
- Rec.709
- Calibration support
- Atomos Calibrator on PC/Mac with Calibrite ColorChecker Display Pro & ColorChecker Display Plus + Simple on-device calibration (connect Calibrite probe directly to Shinobi II via USB-C)
Color Pipeline
- Gamma
- Sony SLog / SLog2 / SLog3 / HLG
Canon C-Log / C-Log2 / C-Log3
Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400
LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
Panasonic V-Log / HLG
JVC J-Log
Red RedLogFilm / Log3G10 / Log3G12
FujiFilm F-Log
PQ (HDR10)
HLG
Nikon N-Log
- Gamut
- BT.2020, DCI P3, DCI-P3 D65, Rec709
Sony S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709
Canon Cinema / BT.2020 / DCI P3 / DCI P3plus / Rec.709
Panasonic V Gamut / Rec.709
Arri Alexa Wide Gamut / Rec.709
JVC LS300 / Rec.709
Red DragonColor / DragonColor2
RedColor2 / RedColor3 / RedColor4 / RedWideGamut
- 3D LUT Display
- .Cube Format (17 & 33 points supported)
- 3DLUT 50/50
- Yes
- Monitoring Modes
- SDR Native, HDR HLG, HDR PQ, 709 LUT, User LUT
Video Input
- HDMI
- 1 x HDMI (1.4)
- Bit Depth
- 8/10-bit video
- Video Chroma Subsampling
- 4:2:2
Audio In/Out
- HDMI
- 2 channel, 24-bit, input dependent
- Analogue Audio in
- 3.5mm headphone jack, 2 channel
- Headphone out
- 3.5mm headphone jack, 2 channel
Timecode / Sync / Control
- Embedded
- HDMI (display only)
Resolution & Frame Rates
- Monitor
- 4K DCI 23.98/24/25/29.97/30
4K UHD 23.98/24/25/29.97/30
2K DCI 2048 x 1080
FHD 1920 x 1080 Progressive: 23.98/24/25/29.97/30/50/59.94/60
FHD 1920 x 1080 Interlaced: 50i/60i
1280 x 720p: 50/59.94/60p
SD PAL / NTSC
Supported media
- SD
- Update firmware & upload LUTs
- File System
- FAT32, NTFS
On screen tools
- MultiScope Analysis View
- Image, WFM, vector, histogram
- Waveform
- 3 sizes – adjustable opacity & brightness
- Histogram
- 3 sizes – adjustable opacity & brightness
- RGB Parade
- 3 sizes – adjustable opacity & brightness
- Vector scope
- 1 size – adjustable opacity & brightness
- 1 x Zoom
- Tap to zoom
- 2 x Zoom
- Tap to zoom
- 4 x Zoom
- Tap to zoom
- Focus peaking
- 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity
- Atomos False Color
- Yes, with Scale
- Zebra
- Adjustable threshold (50% to 105%)
- Isolate color channel
- Blue Only
- Cine Frame Guides
- Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
- Social Frame guides
- Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
- Safe areas
- SMPTE safe title area – 93% & 90%
- Grid markers
- 9 grid
- Anamorphic desqueeze
- 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
- Horizontal & vertical
Remote Control
- Serial 2.5mm Jack
- Calibration via optional USB to serial cable
External Device Control
- Serial 2.5mm Jack
- Camera control for Z CAM cameras via optional USB to Serial Cable
- USB
- Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator
