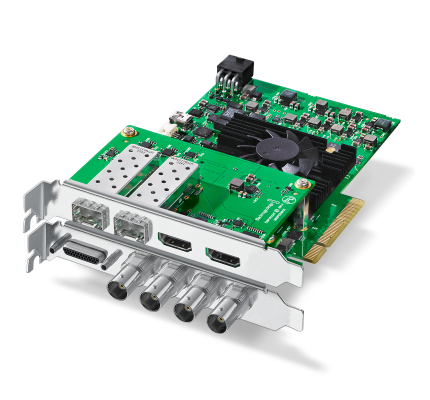

Blackmagic DeckLink 4K Extreme 12G (BM-BDLKHDEXTR4K12G)

Blackmagic DeckLink 4K Extreme 12G (BM-BDLKHDEXTR4K12G)
Capture and playback 12G-SDI in SD, HD, Ultra HD and 4K DCI up to 4096 x 2160 60p in 10-bit YUV or 12-bit RGB!

The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 25p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!

DeckLink Overview
The world's highest performance capture cards for Mac, Windows and Linux

DeckLink capture and playback cards are used every day in the production of television commercials, music videos, episodic television programs and Hollywood feature films. With cutting edge technologies built in, you get the highest quality video and maximum reliability. No other capture cards support more applications and more platforms than DeckLink, so you can always work with your favorite software. Every DeckLink PCIe card can be installed in Mac, Windows and Linux based workstations and media servers to give you ultimate flexibility!

Perfect for Post Production
SD, HD, 3D and Ultra HD!

Work with any video format and resolution that you need! Capture from cameras, decks and live feeds directly into editing, effects and design software applications. DeckLink Studio 4K and DeckLink SDI 4K feature high resolution Ultra HD, while DeckLink 4K Extreme 12G and DeckLink 4K Pro also includes dual link 12G-SDI, 2160p60 support, 4:4:4 image quality, 3D stereoscopic for advanced feature film visual effects, editing and color correction. There are DeckLink models to support either file or tape based workflows to precisely deliver perfect monitoring in editing and grading suites using professional SDI monitors, HDMI televisions and even video projectors.

Select Your Favorite Model
There’s a perfect DeckLink model for every job! The high performance DeckLink 4K Extreme 12G and DeckLink 4K Pro features the latest advanced 12G technology for Ultra HD running at a massive 60 frames a second with separate fill and key links, Dual Link multi rate 12G-SDI, HDMI 4K, 4:4:4, stereoscopic 3D and super fast 8 lane PCIe Gen 2. DeckLink Studio 4K is great when you need lots of analog connections as well as multi rate 6G-SDI connections and DeckLink SDI is the perfect SDI only design with multi rate 6G-SDI connections. All these models of the DeckLink 4K family support capture and playback of SD, HD or Ultra HD video with support for embedded SDI audio so you get full compatibly with all your equipment!

Highest Quality Connections
Every DeckLink card features the highest quality connections so you get pristine video and audio quality and can connect to the widest range of professional SDI equipment. DeckLink 4K Extreme 12G includes Dual Link 12G-SDI, HDMI 4K, analog video, as well as 2 channels of AES/EBU audio and 2 channels of balanced analog audio in and out. DeckLink Studio 4K includes 6G-SDI, HDMI 1.4b, analog component, S-Video, composite video, 2 channels of AES/EBU audio and 4 channels of balanced analog audio in and out. You also get a down converted SD output. DeckLink SDI 4K is perfect for high quality 10 bit SDI use only. All models include black burst/tri-sync reference and serial deck control. All DeckLink 4K models switch between SD and HD and Ultra HD, while the advanced DeckLink 4K Extreme 12G and DeckLink 4K Pro support DCI 4K and other high frame rate feature film formats!

Unrivaled Video Quality
DeckLink lets you work with compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video. When working with uncompressed, all images are a mathematically perfect pixel-for-pixel clone of the source, without any generational loss, so you have the confidence you’re working at the absolute highest quality possible. Get sharper keying with green screens, cleaner compositions, superior color correction and more! Should you need to use compression, support for industry leading file formats ensures that you can maintain the highest quality throughout post production.

Advanced Technology
Get the latest 6G-SDI and 12G-SDI technology so you can capture and playback in full resolution Ultra HD video, while remaining fully compatible with all SD and HD-SDI equipment! That’s 4 times the resolution of regular 1080 HD video at a massive 3840 x 2160 image size! DeckLink SDI 4K and the DeckLink Studio 4K include 6G-SDI, while the advanced DeckLink 4K Pro and DeckLink 4K Extreme 12G include Dual Link 12G-SDI connections for higher color resolution, dual stream 3D stereoscopic support and frame rates up to Ultra HD 60p! The DeckLink 4K Pro and DeckLink 4K Extreme 12G are the perfect choice for DaVinci Resolve editing and color correction!

Use Your Favorite Software
DeckLink cards work with the software you love to use!

Mac OS X: No other capture and playback cards are supported by more software applications for Mac OS X. Get drivers that work with fantastic editing software such as Avid Media Composer, Final Cut Pro X, Premiere Pro CC, Symphony and News Cutter. For visual effects get full compatibility with Fusion, After Effects CC and Photoshop CC. For audio get compatibility with ProTools, Nuendo and Cubase. For streaming use Flash Media Encoder, Wirecast, Livestream Procaster.

Windows: For Windows you get access to a massive range of software because DeckLink supports WDM, DirectShow and QuickTime! For editing you can use Avid Media Composer, Avid News Cutter, Premiere Pro, Sony Vegas Pro, Corel VideoStudio, CyberLink Power Director and MAGIX Video Pro. For visual effects use Fusion, After Effects CC and Photoshop CC. Audio software supported includes Steinberg Nuendo and Cubase. When streaming you get compatibility with Flash Media Encoder, Xsplit Broadcaster, Wirecast and Livestream Procaster.

Linux: DeckLink cards are open standard capture cards and are perfect for the development of Linux based video applications. The availability of a free, well documented SDK makes it easy for you to develop specific solutions to meet your needs, or to work with solutions that have been developed by others. Blackmagic’s Design Media Express is also available for capture and playback when using DeckLink with Linux operating systems.

In The Box
- DeckLink 4K Extreme 12G
- HDMI mezzanine card
- SD card with software and manual
- Breakout cable for analog and RS-422 control
- External power cable
