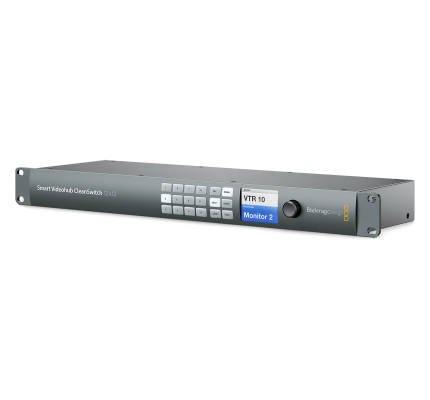

Blackmagic Smart Videohub CleanSwitch 12x12 (BM-VHUBSMTCS6G1212)

Blackmagic Smart Videohub CleanSwitch 12x12 (BM-VHUBSMTCS6G1212)

Kompaktowy router 6G-SDI z wbudowanymi re-synchronizatorami na wszystkich wejściach pozwala na czyste przełączanie między wszystkimi źródłami wideo tego samego standardu, a także może być używany jako 12 re-synchronizatorów do automatycznego przetaktowania sygnałów SDI. Smart Videohub CleanSwitch obsługuje 12 wejść i 12 wyjść w praktycznie każdym formacie wideo SD, HD i Ultra HD. Obsługa wielu formatów na tym samym routerze jednocześnie i czyste przełączanie między wieloma formatami, które są zgodne z klatkażem referencyjnym, gdy przełączanie odbywa się między tym samym standardem wideo. Obejmuje routing przycisków i pokręteł na panelu sterowania, elegancki, obrabiany maszynowo metalowy panel sterowania z LCD do wyświetlania routingu i podglądu wideo oraz zdalne sterowanie przez sieć Ethernet.

SDI Video Input

12 × 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Output

12 × 10-bit SD-SDI, HD-SDI and 6G-SDI.

Reference Input

Black burst and Tri-Sync for SD, HD and 4K.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD, SD video and DVB-ASI.

Updates

USB or Ethernet.

Front Panel Router Control

12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Router Configuration

Via front panel LCD or RJ45 Ethernet.

RS-422 Router Control

1 × input for controlling router crosspoint switching.

Reclocking

On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.

Standards

SD Format Support

625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.

HD Format Support

1280 × 720p50, 1280 × 720p59.94, 1280 × 720p60, 1920 × 1080i50, 1920 × 1080i59.94, 1920 × 1080i60, 1920 × 1080PsF23.98, 1920 × 1080PsF24, 1920 × 1080PsF25, 1920 × 1080PsF29.97, 1920 × 1080PsF30, 1920 × 1080p23.98, 1920 × 1080p24, 1920 × 1080p25, 1920 × 1080p29.97, 1920 × 1080p30, 1920 × 1080p50, 1920 × 1080p59.94, 1920 × 1080p60.

2K Format Support

2048 × 1080p23.98, 2048 × 1080p24, 2048 × 1080p25, 2048 × 1080PsF23.98, 2048 × 1080PsF24, 2048 × 1080PsF25

4K Format Support

3840 × 2160p23.98, 3840 × 2160p24, 3840 × 2160p25, 3840 × 2160p29.97, 3840 × 2160p30, 4096 × 2160p23.98, 4096 × 2160p24, 4096 × 2160p25, 4096 × 2160p29.97, 4096 × 2160p30

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M Level B, SMPTE 425M Level A, ITU-R BT.656 and ITU-R BT.601.

SDI Video rates

SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Audio Sampling

Television standard sample rate of 48kHz and 24 bit.

SDI Color Precision

4:2:2 and 4:4:4 10 bit.

SDI Color Space

YUV or RGB.

SDI Auto Switching

Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.

SDI Metadata Support

Video payload identification ancillary data as per SMPTE 352M.

Display

Display

Built-in LCD for video and menu settings.

Software

Software Control

Router control included free for Windows™ and Mac OS X™.

Internal Software Upgrade

Via included updater application.

Operating Systems

Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.

Power Requirements

Power Fail Protection

Router connections preserved and restored instantly at power on.

Power Supply

IEC power cable required. 90 - 240V AC input.

Physical Specifications

Width

19in

Height

1.75in

Depth

6.3in

Weight

4.14lb

Physical Installation

Physical Installation

1 rack unit size. Less than 6 inches deep.

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 45° C (-4° to 113° F)

Relative Humidity

0% to 90% non-condensing

What's Included

Smart Videohub CleanSwitch 12x12
Software SD card

Warranty

12 Month Limited Manufacturer's Warranty.
