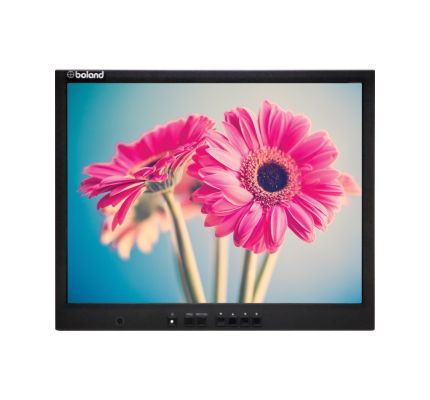

Boland TP15DB LED Broadcast Monitor 15 inch

SKU: 1000011881
Boland TP15DB LED Broadcast Monitor 15 Zoll
Dostępność 15-20 dni.
9 384,85 ‎zł 7 629,96 ‎zł

Boland TP15DB LED Broadcast Monitor 15 Zoll (TP15DB)

Boland Communications, gegründet im Jahr 1979, mit Hauptsitz in Lake Forest, Kalifornien, USA bietet Premium LCD und LED Monitore in allen gängigen Formaten. Boland Broadcast Monitore stehen für erstaunliche Bilder mit verbesserter Ultra-Pixel Bildqualität bei wechselnden Licht- und Sichtverhältnissen.

Boland TP15DB LED Broadcast Monitor 15 Zoll Features

15″ DayBrite Professional Video Monitor with Scan Reverse
High & Standard Definition Video LCD Monitor 1080/720/576/480
3G SDI with loop out, HDMI
Analog inputs are Composite, PC-VGA
Modes: EGA to WUXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
10-bit Digital Processing (up to 1920 x 1200), 16.7 million true colors, 24 bit
Aspect Ratios: 16:9, 4:3, 1.85 to 1, etc. Presets and Adjustable
Fully Adjustable Scans: H & V sizes, Overscan / Underscan, Reverse Scan
Digital Adaptive Comb Filters

Specifications

Active Area (Diagonal): 15.0″

Modes

High & Standard Definition Video Modes: 1080/720/576/480 @23/24/25/29/30/60 i/p/sF Digital and Analog (autoselected), VESA VGA & DVI
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M (autoselected)

Inputs

Digital Video Inputs: 3G / HD / SD SDI (SMPTE 259M/292/296), HD HDMI
Analog Video Inputs: Composite, PC VGA (EIA, CCIR, VESA, SMPTE 274)


Aspect Ratios: 16:9, 4:3, Letterbox, and (de-) Anamorphic, Fixed and Variable Aspect Ratio Images
Pixel (RGB Trio) Arrangement: 1024 H x 768 V RGB Vertical Stripe (983.040 Pixels, 15:9/1.667:1)
Pixel (RGB Trio) Pitch, Depth: 0.297 H x 0.297 V mm, 16.7 million colors (10 bit digital processing)
Brightness, typical, 0°: 1000 nts (cd/m2)
Contrast Ratio, 0°: 700:1 (high contrast)
Color Bit Depth: 16.7 million colors (10-bit Digital Processing)
Viewing Angle, contrast>10:1 : 165° H, 160° V
Response Time: 8 ms (high speed)
Standard Definition Video Resolution: 450 TVL

Controls

User Controls: On/Off, Menu System: Step, Increment, Decrement

Backlight

Light Source (standard): LED
Lamp Life: 50,000+ Hours

Connectors

Video Connectors: BNCx2: 3G/HD/SD SDI in (1), HDMI / Composite in/out (Hi-Z passive loop-thru / auto-termination (2)
HDMIConnectors: Up to 1920 by 1200
VGA/PC Connector: DE-15HD-F

Power

DC Power: 12 VDC, (11.4~12.6)
DC Connector: D4M (XLR4-M) (Locking; pin 1: gnd, pin 4: +12 v)
AC Power (detached power supply included): 90-264 VAC Universal, 47~63 Hz, 25 watts
AC Power Connector: IEC-320 3 pin Male (universal)

Display

Window (Display Area): 12.04 x 9.05
Cabinet Dimensions: 13.43 x 11.048
Mounting / Rackmounting: 10-32×4 (10-32 each corner), VESA 75mm or 100mm (M5)), Options: rackmount, deskstand
Operating (full spec): 0 ~ +50°C, @ 10-90% RH, no condensation 10,000 ft / 3000 m
Storage: -20 ~ +60°C, @ 10-90% RH, no condensation, 40,000 ft / 12,000m
Case Color & Material: Textured Semi-Gloss Black Powder Hard Coat, Aircraft Aluminum
Approvals: RoHS (Pb) Compliant Product

Weitere technische Daten entnehmen Sie bitte dem Datenblatt im Downloadbereich
