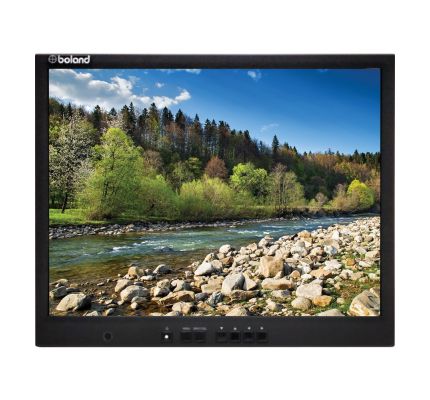

Boland TP19DB LED Broadcast Monitor 19 inch (TP19DB)
Boland Communications, established in 1979 and headquartered in Lake Forest, California, USA provides premium quality LCD and LED monitors available in world wide formats. Boland Broadcast Monitors stand for amazing images with enhanced Ultra Pixel picture quality in varying light and viewing conditions.
Boland TP19DB LED Broadcast Monitor 19 inch Features
19″ DayBrite Professional Video Monitor with Scan Reverse
High & Standard Definition Video LCD Monitor 1080/720/576/480
3G SDI with loop out, HDMI
Analog inputs are Composite, PC-VGA
Modes: EGA to WUXGA, NTSC/PAL/SECAM/NTSC4.43/PAL-M
10-bit Digital Processing (up to 1920 x 1200), 16.7 million true colors, 24 bit
Aspect Ratios: 16:9, 4:3, 1.85 to 1, etc. Presets and Adjustable
Fully Adjustable Scans: H & V sizes, Overscan / Underscan, Reverse Scan
Digital Adaptive Comb Filters
Specifications
Active Area (Diagonal): 19.0″
Modes
High & Standard Definition Video Modes: 1080/720/576/480 @23/24/25/29/30/60 i/p/sF Digital and Analog (autoselected), VESA VGA & DVI
PC Video Modes: EGA, VGA, SVGA, XGA, WXGA, SXGA, WSXGA, UXGA, WUXGA
Standard Definition Video Modes: NTSC/PAL/SECAM/NTSC4.43/PAL-M (autoselected)
Inputs
Digital Video Inputs: 3G / HD / SD SDI (SMPTE 259M/292/296), HD HDMI
Analog Video Inputs: Composite, PC VGA (EIA, CCIR, VESA, SMPTE 274)
Aspect Ratios: 16:9, 4:3, Letterbox, and (de-) Anamorphic, Fixed and Variable Aspect Ratio Images
Pixel (RGB Trio) Arrangement: 1280 H x 1024 V RGB Vertical Stripe (983.040 Pixels, 15:9/1.667:1)
Pixel (RGB Trio) Pitch, Depth: 0.294 H x 0.294 V mm, 16.7 million colors (10 bit digital processing)
Brightness, typical, 0°: 1000 nts (cd/m2)
Contrast Ratio, 0°: 1000:1 (high contrast)
Color Bit Depth: 16.7 million colors (10-bit Digital Processing)
Viewing Angle, contrast>10:1 : 170° H, 160° V (extreme wide view)
Response Time: 5 ms (high speed)
Standard Definition Video Resolution: 450 TVL
Controls
User Controls: On/Off, Menu System: Step, Increment, Decrement
Backlight
Light Source (standard): LED
Lamp Life: 50,000+ Hours
Connectors
Video Connectors: BNCx2: 3G/HD/SD SDI in (1), HDMI / Composite in/out (Hi-Z passive loop-thru / auto-termination (2)
HDMIConnectors: Up to 1920 by 1200
VGA/PC Connector: DE-15HD-F
Power
DC Power: 12 VDC, (11.4~12.6)
DC Connector: D4M (XLR4-M) (Locking; pin 1: gnd, pin 4: +12 v)
AC Power (detached power supply included): 90-264 VAC Universal, 47~63 Hz, 35 watts
AC Power Connector: IEC-320 3 pin Male (universal)
Display
Window (Display Area): 14.89 x 11.95
Cabinet Dimensions: 16.50 x 13.9
Mounting / Rackmounting: 10-32×4 (10-32 each corner), VESA 75mm or 100mm (M5)), Options: rackmount, deskstand
Operating (full spec): 0 ~ +50°C, @ 10-90% RH, no condensation 10,000 ft / 3000 m
Storage: -20 ~ +60°C, @ 10-90% RH, no condensation, 40,000 ft / 12,000m
Case Color & Material: Textured Semi-Gloss Black Powder Hard Coat, Aircraft Aluminum
Approvals: RoHS (Pb) Compliant Product
For further technical data go to download section.
